    首页 > 产品中心 > 孔板万博manbetx手机 孔板万博manbetx手机

    Orifice Plate Flowmeter

    时间:2019-01-14人气:

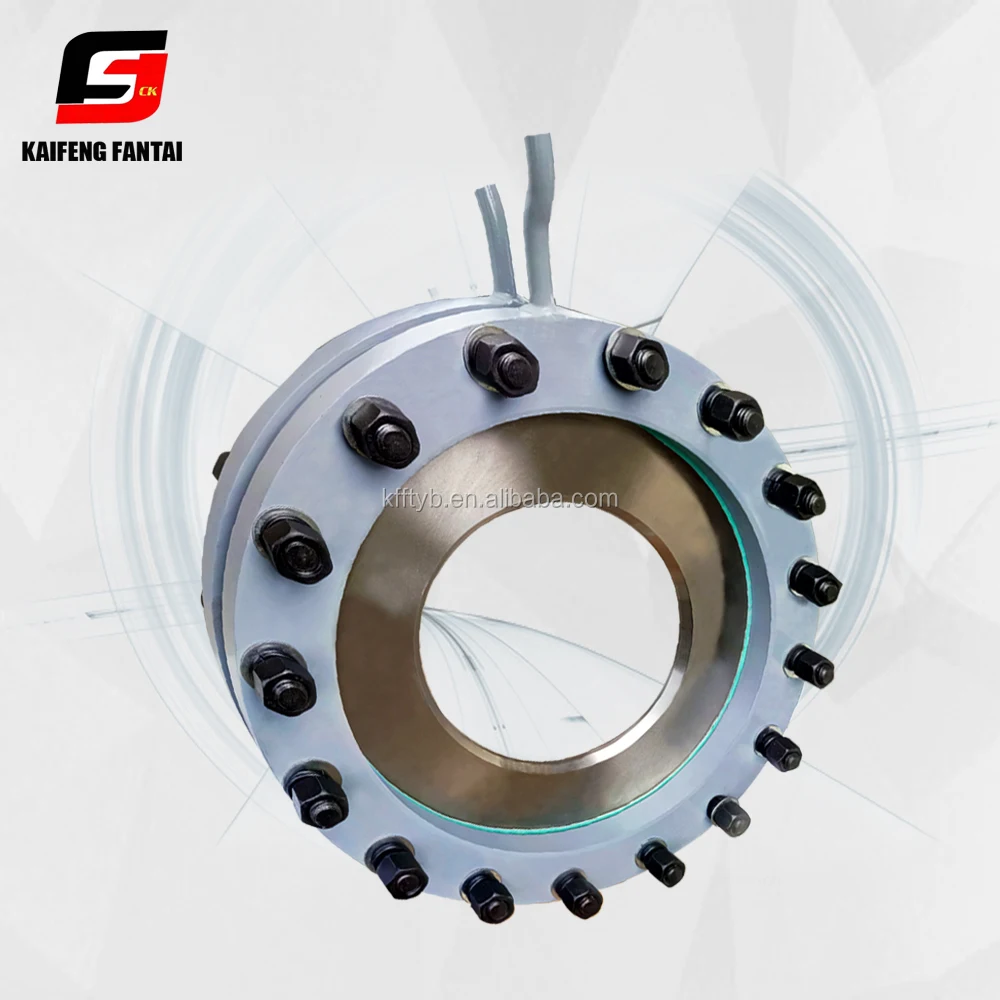

    Flange Type Oriface Plate Flowmeter from Fantai


     Oriface palte flowmeter introduction

    16

     Integrative type standard orifice plate is a conical body which is installed in the center of pipeline,it can change the flow field.the high pressure P1 from tube wall which is the flow body has not yet throttling accelerated before vertebral devices;Low pressure P2 are taken from the after centrum rear,and it can draw forth transmitter branch pipe in front of inner vertebral,its square root of differential pressure(P1-P2) is proportional to the rate of flow,then work out a fluid flow,the products are widely used in flow measurement for the liquid,gas or steam of the steel industry,electric power,chemical etc industry.



    Flange Type Oriface Plate Flowmeter charactor



  • Easy install,simple structure.
  • High resolution and fast response time; 5 to 50 sec
  • Wide temperature range; -20 ~ 300 °C)
  • Pressures can stand up to 3,600 psig (250 bars) with using special high-pressure flanges
  • Easily cleaned
  • HART communicaitons available
  • Use stainless steel to improve durability and minimize maintenance
  • 17

    Flange Type Oriface Plate Flowmeter Parameters



        Diameter(mm)
      DN50~1000m
       Measured medium
      Liquid,common gas,saturated stream,superheated steam, and so on
       Connection mode
      Flange connection type,inserted type,others
       Explosion proof
      Intrinsically safe explosion-proof
       Output
      Common,standard signal output
       T or P compensation type
     Local display,high temperature compensation,pressure compensation
       T&P compensation
      Temperature-pressure compensation
       Inserted type Diameter
      DN100~DN2000



    Related products






    Oriface Plate Flowmeter manufacturing company information






     Our Flange Type Liquid Turbine Flowmeter Certificate


     Our Flange Type Liquid Oriface Flowmeter service


  • On time delivery,if delayed,we will compensate according to the contracts.
  • Scheduled producing management
  • Export products has priority to domestic order on product quality and lead time
  • Good products focus more on the aftersale service and Consult service,
  • Good packing service
  • Excellent Calibration service
  •

     Send enquiry for more info about the Oriface Plate Flowmeter

    We gurantee that the quality of the oversea sales products are much better than domestic model.



    Please place an trial order to  try our service  and you will like it !!
