    首页 > 产品中心 > 涡轮万博manbetx手机 涡轮万博manbetx手机

    Turbine flowmeter

    时间:2019-01-14人气:

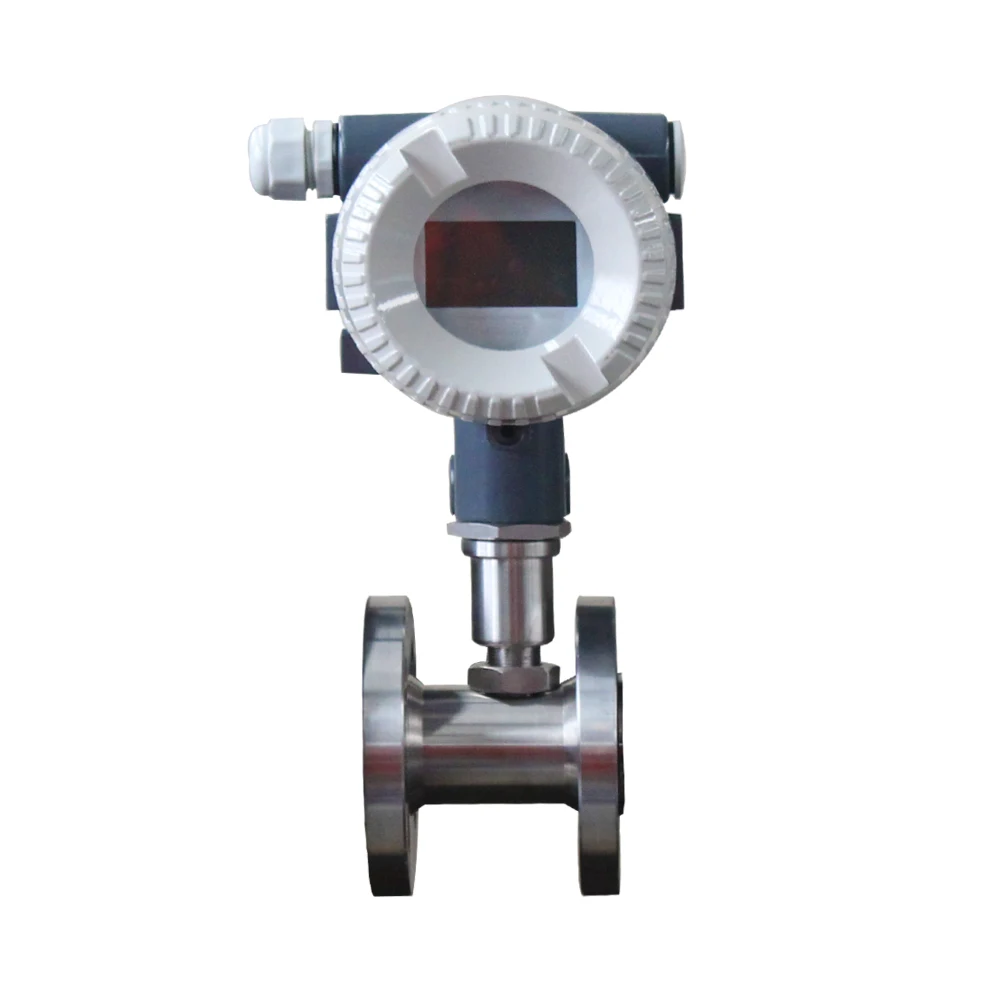

    Good quality Fantai wafer turbine flowmeter from Fantai


     Turbine flowmeter introduction

    .jpg



    A turbine flow meter is used for volumetric total flow and/or flow rate measurement and has a relatively simple working principle. As fluid flows through the turbine meter, it impinges upon turbine blades that are free to rotate about an axis along the center line of the turbine housing. The angular (rotational) velocity of the turbine rotor is directly proportional to the fluid velocity flowing through the turbine. The resulting output is taken by an electrical pickoff mounted on the flow meter body.

    Good quality Fantai Wafer Turbine Flowmeter Charactor


  • Easy install,simple structure.
  • High resolution and fast response time; 5 to 50 sec
  • Wide temperature range; -4 ~ 230 °F (-20 ~ 110 °C)
  • Easily cleaned; designed to flush particulates through the meter with the fluid media
  • Factory calibrated by Gravimetric method
    Battery-powered display available
  • RS-485 and HART communicaitons available
  • Use stainless steel to improve durability and minimize maintenance for you.
  • 0136.jpg

    Good quality Fantai wafer turbine flowmeter parameters



    Fluid Condition
    Pure fluid
    volecity
    minimum 0.4-0.5m/s
    Sensor material
    SS304 SS316 available
    Turn down
    1:20
    Ambient temperatture

    -20℃~+60

    fluid temperature
    -20℃~+120℃
    output
    pulse,4-20mA
    communication
    RS485, HART
    power supply
    24VDC (two lines), 12~24VDC(three lines).  battery support.
    Ingress protection
    IP65
    Accuracy
    0.2%R,0.5%R,1%R





    Good quality Fantai wafer turbine flowmeter flow range data:



    DN
    Flow range(m3/h)
    Pressure(Mpa)
    0.2%R
    0.5%R
    1%R
    15mm
    1.2-4
    0.6-6
    0.4-6
    1.6-6.3
    20mm
    2-6
    0.8-8
    0.6-8
    25mm
    3-10
    1.2-12
    1.2-12
    32mm
    4-12
    1.5-15
    1-20
    40mm
    8-25
    3-30
    3-30
    50mm
    12-40
    5-50
    5-50
    1.6-2.5





    Good quality Fantai wafer turbine flowmeter manufacturing flowchart



    Pipe cutting ——>lathe processing ——>Polishing——>Rotor assemble——>Transmitter assemble ——> Flowmeter calibration ——>Qualified products




    Calibration is the most important parts of manufacturing the high accuracy flowmeter,As the principle is the same,the material and the structure design of the flowmeter is not much different.High accuracy flowmeters depends on the high accuracy calibration equipment.



    Good quality Fantai wafer turbine flowmeter advantages in details




  • We use the reference flowmeter method to confirm the sensor condition,then after assemble,we will use the gravimetric systems to confirm the sensor and the transmitter condition.The calibration device included the high accuracy Sartorius scale.
  • we use the 8 or 12 blades for better accuracy.
  • We use the label to remind customer where to connect the power and voltage in case the unmatched voltage damage the flowmeter.
  • The big screen LCD display the forward gross volume,flow volume and unit clearly.
  •





    Related products






     Turbine flowmeter manufacturing company information








     Our Good quality Fantai wafer turbine flowmeter Certificate


     Our Electromagnetic flowmeter service



  • On time delivery
  • Scheduled producing managementt
  • Export products has priority to domestic order on product quality and lead time
  • Good products focus more on the Aftersale service and Consult service,
  • Good Package
  • Good installation guide service
  • QQ20181204152101.jpg

     FAQ of Turbine flowmeter



    1.How do you calibrate the flowmeter?

    We use the reference standard flowmeter method to calibrate the 0.5%R flowmeters.We use the Gravimetric for the 0.2% R flowmeters.



    2.How can you gurantee the high accuracy?

    The Gravimetric mothod is much more accurate than the volumetric calibration and we use the high accuracy sidorious scale to gurantee the less tolerance.



    3.How many years do you use the calibration ?

    we use it since our factory starts at 2008.



    4.Why is the calibration very important?

    The material and the structure of the magnetic flowmeter are not much difference,and the accuracy depends what it reference.Our high accuracy Sartorius scale can reach the 0.016%.so it is no problem to gurantee the 0.2% accuracy.



    5.Do you need agent?

    Yes,we need agent to expand our sales,we provide technical support,Products priority and good price.



    6.I am a small company,Can I be your agent?
    We are a developing company ,we Appreciate partners who is willing to grow with us



    You minght be a common customer to a large scaled company or famous brand,but for us ,you are the most important and we will put you to the first.



     Send enquiry for more info about Electromagnetic flowmeter



    We gurantee that the quality of the oversea sales products are much better than domestic model.



    Please place an trial order to  try our service  and you will like it !!



    We can accept the order with trade assurance on Alibaba to protect your quality,shipment,and payment.
